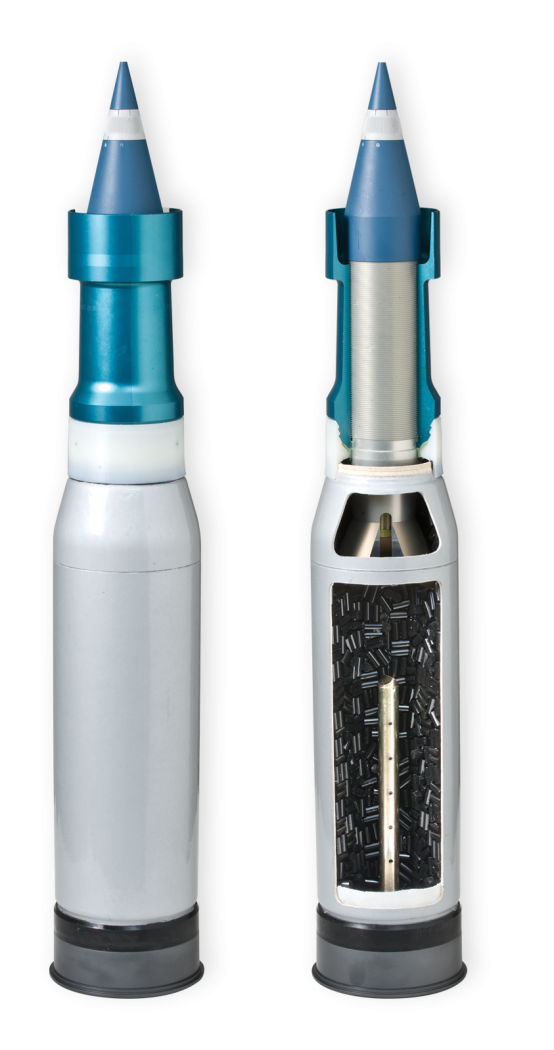

120mm M1002 TPMP-T
120mm M1002 TPMP-T
120mm M1002 TPMP-T
Target Practice Multipurpose-Tracer
The M1002 Target Practice Multi-purpose Tracer (TPMP-T) training round replicates the tactical M830A1 High Explosive Anti-Tank Multi-purpose Tracer (HEAT-MP-T).
The M1002 features a dummy air/ground switch, and is matched ballistically to the time-of-flight parameters of the M830A1, thus creating realistic training. The tailcone stabilizer provides a safety feature, which limits the overall flight range to under 8km, reducing the requirement for extreme-range safety fans.
120mm M1002 Technical Specifications
| Cartridge Data | |
| Length | 984 mm (38.7”) |
| Weight | 22 kg (48.5lbs) |
| Propellant type | RPD-596 Granular |
| Propellant weight | 7.05kg (15.5lbs) |
| Chamber pressure | 5545 bar (80,419 psi) |
| Projectile Data | |
| Type | TPMP-T |
| Length | 533 mm (21”) |
| Weight | 8.165 kg (18.0 lbs) |
| Muzzle Velocity | 1375 m/s (4511 ft/sec) |
| Range | 3000 m |
